Tube Chain Conveyor
Moreover, we can tailor your system, material properties, and speed to correspond perfectly with your bulk material.

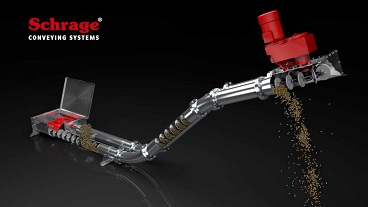

Tube Chain Conveyor overview
Schrage tube chain conveyors are conveyor systems for a wide variety of industries. It is possible to transport abrasive, toxic, explosive, or adhesive bulk material or even materials with high temperatures.
The tube conveyor is available in different designs: horizontal, vertical, diagonal, or a combination thereof and in five different sizes: 115, 135, 160, 200, and 270. It is in this way that the layout, speed, and materials can be optimally adjusted to suit your bulk material.
The conveyor system transports bulk material with grain sizes of up to 100 mm, a bulk density of up to 7 t/m³ or more, and flow rates of up to 80 m³/h. The maximum size per leg is 60 m horizontally or 40 m vertically.
The advantages of the modular chain conveyors are their flexibility and nearly unlimited application possibilities, such as easy vertical conveyance, multiple inlets and outlets, or the conveyance of bulk materials in two directions simultaneously.
The low chain speed is perfect for ensuring the gentle handling of the products.
The conveyor system is absolutely dust-tight with a high selfcleaning capacity and virtually no dead space and, if necessary, can be designed to meet all the ATEX requirements.
Schrage chain conveyers feature low maintenance, easy handling, and high operational reliability.
They require very little space and will quickly pay for themselves due to their low energy requirements and low operational costs.
Strong. Fast. Compact. That is BULKup power!
Bulk material handling made easy! Out of big bags or sacks, and into wagons, trucks or containers. Regardless where you need your product: The BULKup conveys whatever you want and where you want it. On-site filling, emtying or conveying, easy product changes or gentle handling of the product – no demixing, almost 100 % residual emptying and all of this without any backflow, agglutination or compacting.
